Approximate charging time for capacitors:
470uF 390V = 2 seconds
1000uF 390V = 4 seconds
2200uF 390V = 8 seconds
4700uF 390V = 18 seconds
DC-DC Converters

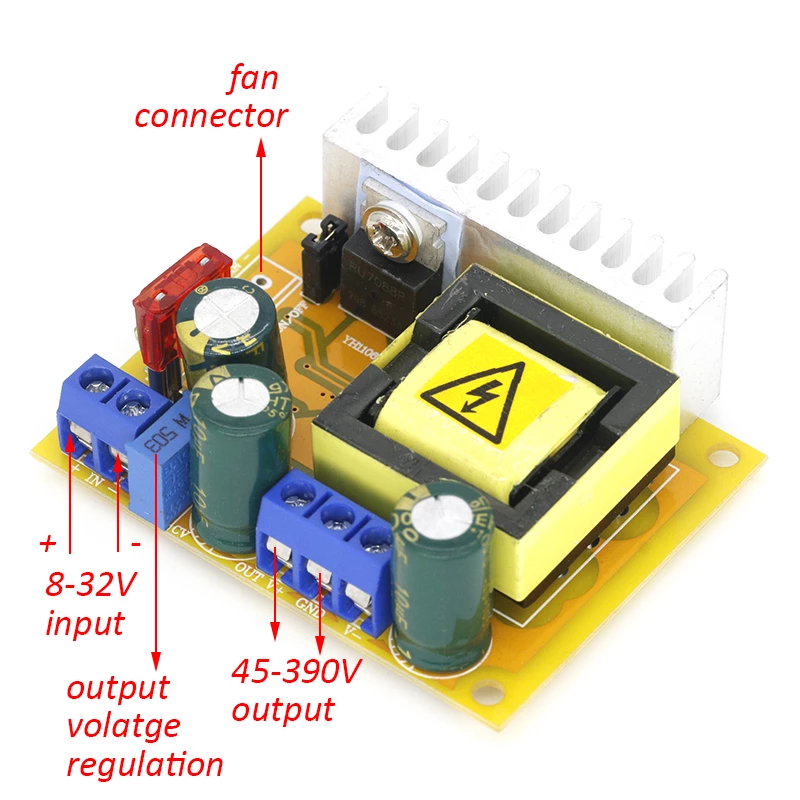

ZVS Capacitor Charging
from 8 - 32V to 45 - 390V
Features
Efficiency
≤ 88%
Operating Frequency
75kHz
Output Power
40W
Voltage
Input
8 - 32V
Output
45 - 390V
Current
Output
≤ 0.2A
Supply
≤ 5A
Protection
Short Circuit Protection
Yes
Over Current Protection
Yes
Over Voltage Protection
Yes
Reverse Polarity Protection
Yes
