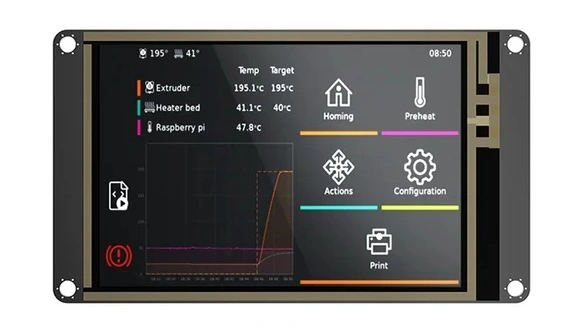

TFT35 SPI V2.1 3.5-inch 480x320
For CB1 M8P 3D-printer motherboards
Description

Introducing the BIGTREETECH TFT35 SPI V2.1 - crystal-clear 3D printer display meticulously crafted by the innovative 3D printing team at Shenzhen Big Tree Technology Co., Ltd.

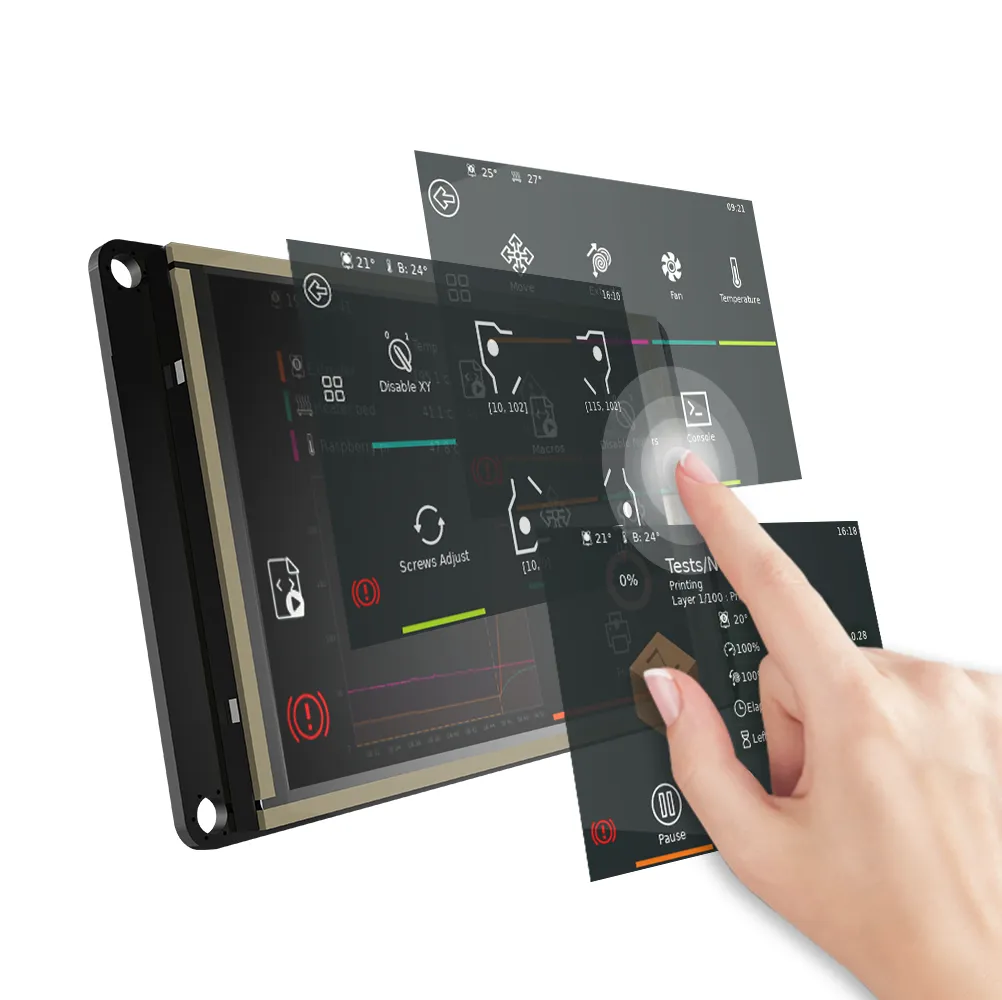

This medium-sized display features a seamless integration of SPI for LCD display and I2C for touch functionality. The touch screen, efficiently controlled by the onboard chip, not only ensures precise responsiveness but also contributes to cost-effectiveness. The connection to the motherboard is effortlessly established through the FPC cable, offering simplicity and convenience in setup.

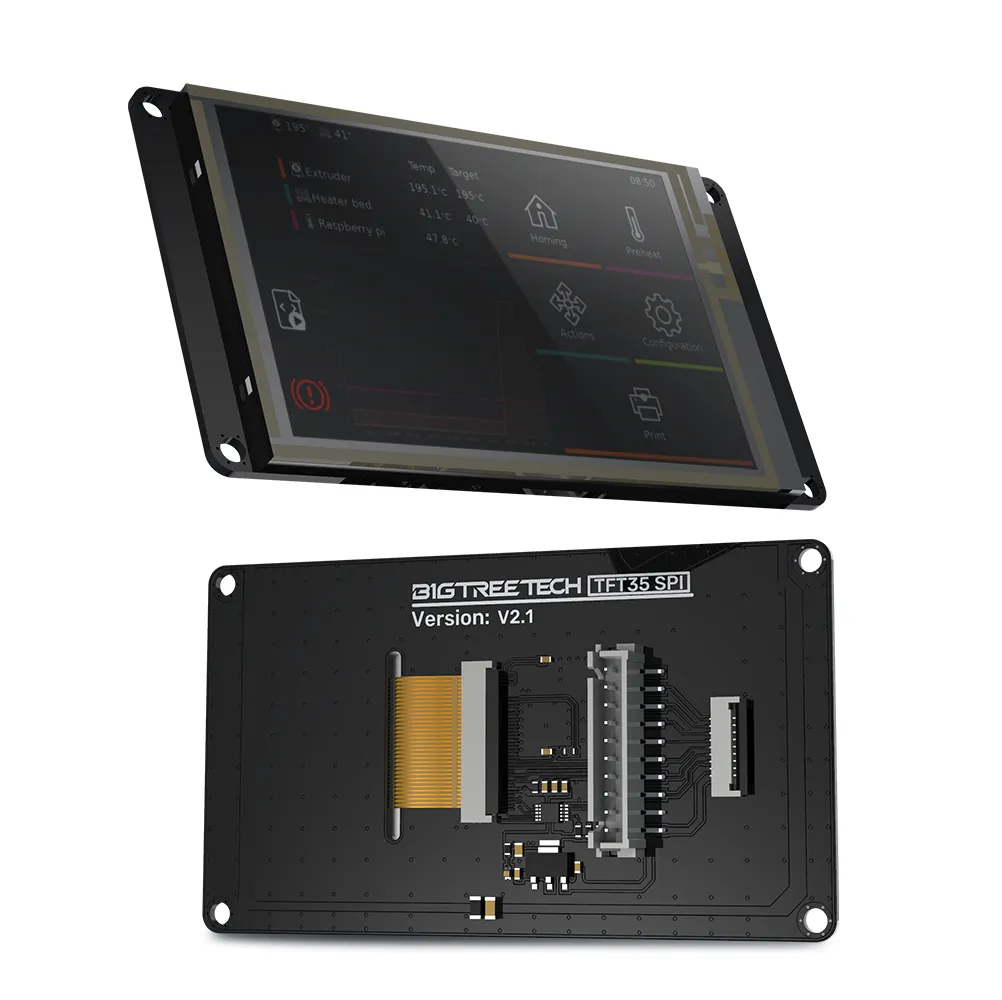

Crafted with the user in mind, the TFT35 SPI V2.1 comes equipped with a XH2.54 terminal, facilitating seamless communication with the printer board. Elevate your 3D printing experience with this thoughtfully designed display unit, perfectly balancing functionality and user-friendly design.

Related Datasheets
Applications
  • 3D-printing
Links to external resources
Features

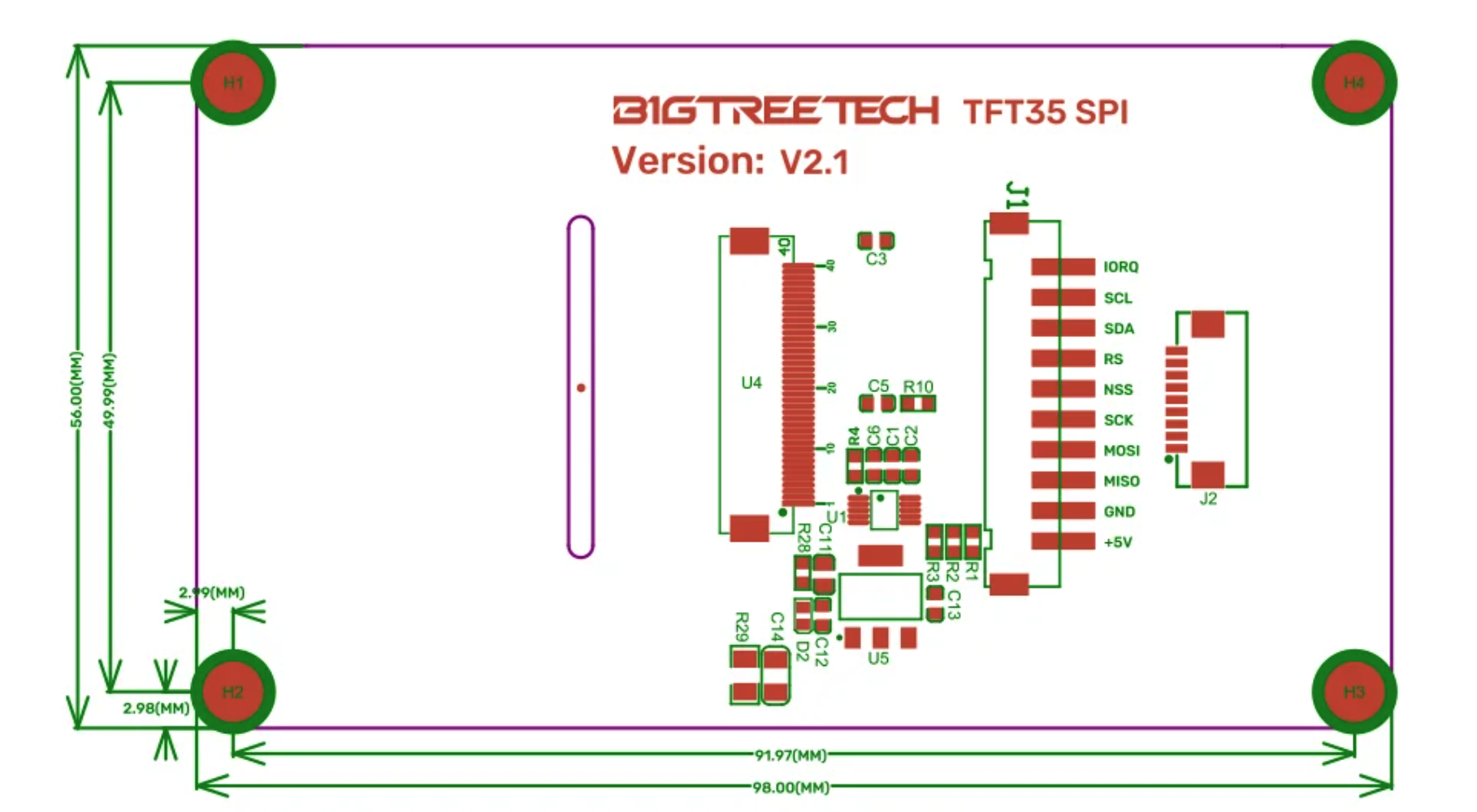

Dimensions

98x56mm

Voltage

Input

5V

Display

Size

3.5''

Resolution

480 x 320

Touch Screen

Yes

Driver

ILI9488

Touch Screen

Controller

NS2009


19.90 £

Sold Out
