The CD74HC4067 module is an analog multiplexer/demultiplexer designed to facilitate the selection and routing of analog signals in electronic circuits. Developed by Texas Instruments, the CD74HC4067 module provides a straightforward solution for expanding the number of analog inputs or outputs available to microcontrollers or other digital devices.
Breakout Boards

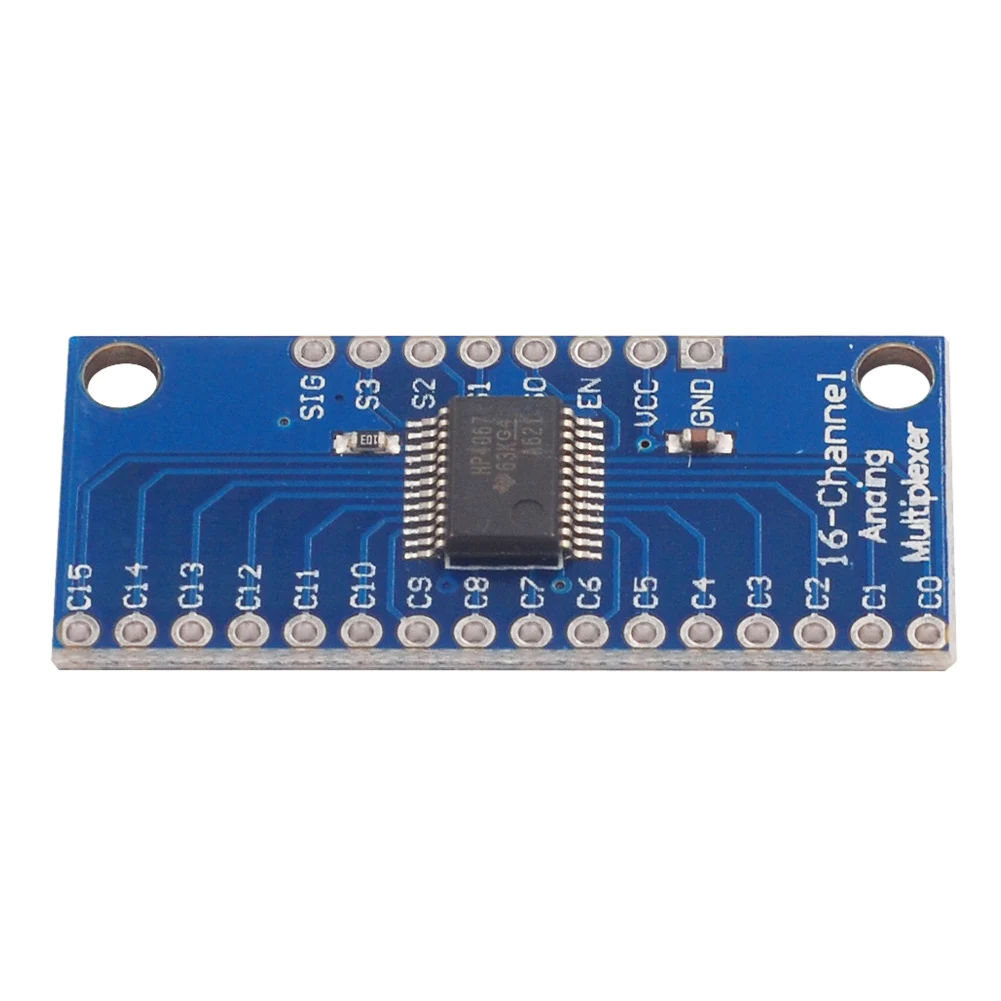

CD74HC4067 Breakout Board
HP4067 16-channel analog mux/demux
Features
- Multiple Analog Channels: The CD74HC4067 module offers a total of 16 analog input/output channels, which can be selectively connected to a single analog input/output pin using the built-in multiplexer/demultiplexer functionality.
- High-Speed Operation: The CD74HC4067 module operates at high speed, allowing for rapid switching between different analog channels without introducing significant delay or latency.
- Digital Control Interface: The CD74HC4067 module communicates with microcontrollers and other digital devices via a standard digital interface (e.g., SPI or I2C), enabling easy control and configuration of the multiplexer/demultiplexer settings.
- Wide Voltage Range: The CD74HC4067 module supports a wide voltage range, making it compatible with a variety of analog input/output signals and voltage levels commonly encountered in electronic circuits.
- Low Power Consumption: Designed for low power operation, the CD74HC4067 module consumes minimal power during operation, making it suitable for battery-powered and portable devices.
