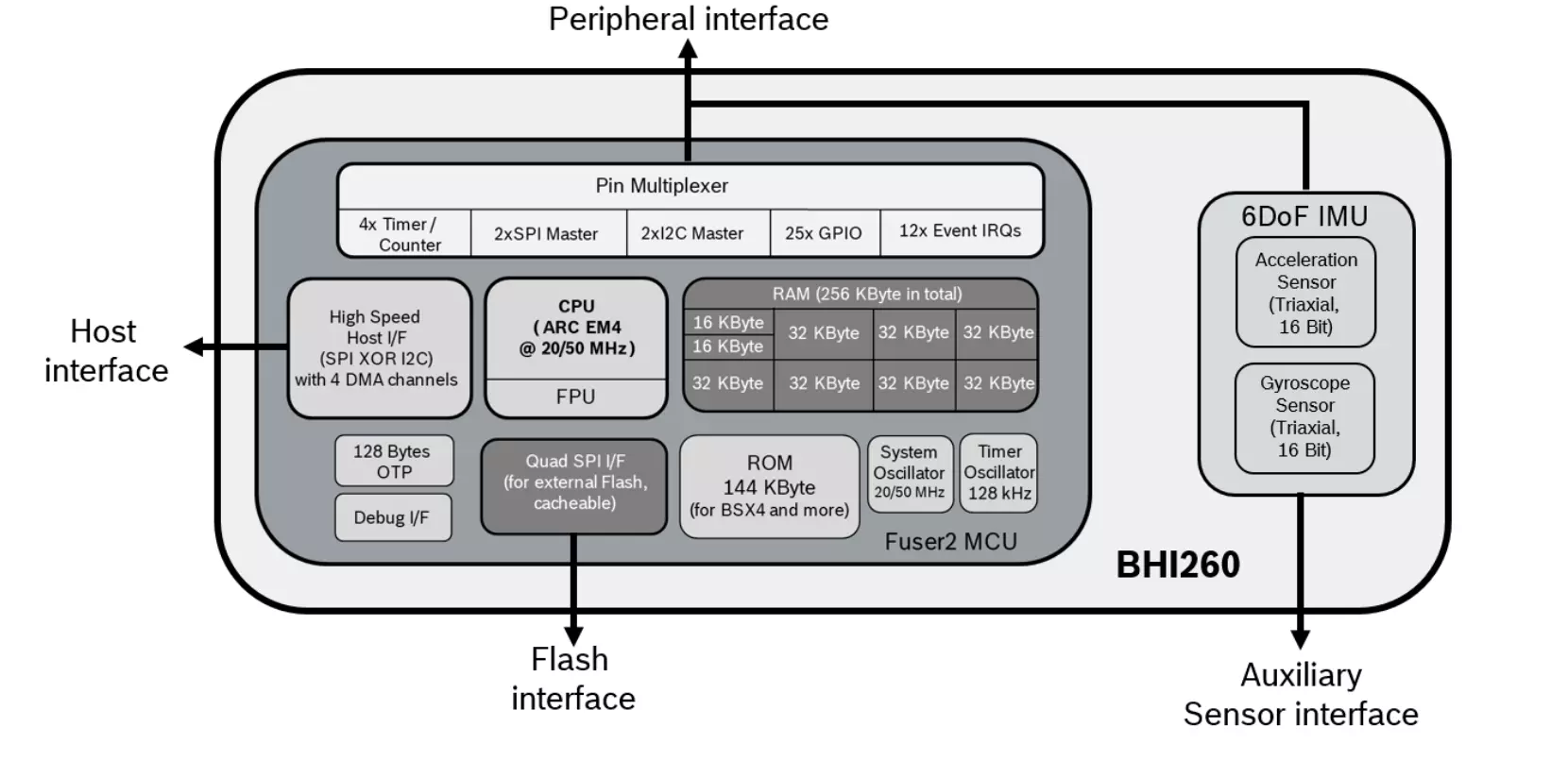

BHI260AP is an ideal comprehensive solution for always-on sensor devices, such as physical activity tracking, pedestrian position tracking, machine learning analytics, and orientation estimation. BHI260AP is an intelligent sensor that incorporates a wide range of software functions, a 32-bit programmable microcontroller, and a 6-axis IMU in a single package.
ICs
BHI260AP
Intelligent Sensor
Features
Voltage Regulator
Yes
Accelerometer
3-axis
Gyroscope
3-axis
Interface
I²C (3.4MHz)SPI and GPIO(s) (50MHz)
Voltage
Supply
1.8V
GPIO(s)
Total
25
Current Consumption
Self-Learning (25Hz)
249uA
Self-Learning (50Hz)
386uA
Standby Mode
8uA
CPU
Type
ARC® EM4 CPU (≤ 3.6 CoreMark/MHz)
Floating-Point Unit (FPU)
Yes
Memory Protection Unit (MPU)
Yes
Memory
DMA
4-channel
