The PZEM-004T v3.0 is a compact power monitoring module designed to measure voltage, current, power, and energy consumption in AC electrical systems. This module is commonly used in various applications, including energy monitoring, smart home projects, and industrial automation.
Measuring Instruments

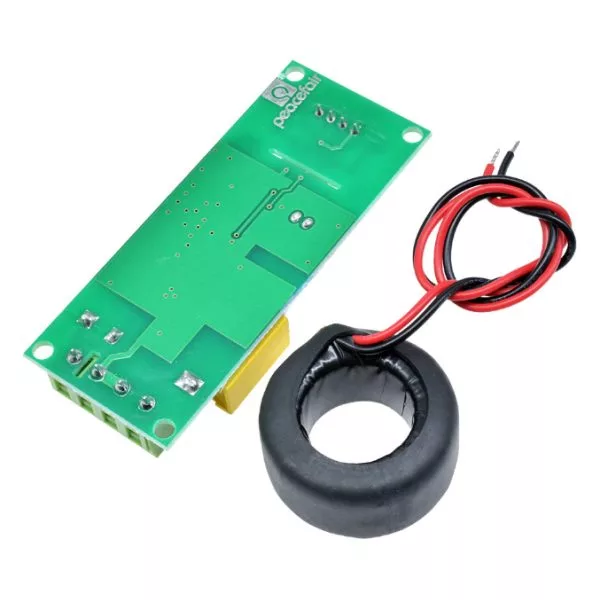

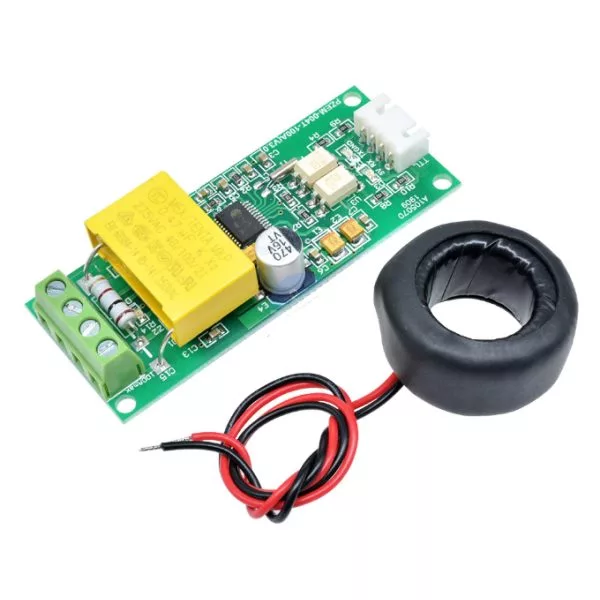

PZEM-004T v3.0
80 - 260V and current up to 100A
Related Datasheets
Links to external resources
Contributors
Features
Dimensions
30.1x73.7x14.3mm
Interface
RS485
Measurement Accuracy
Voltage
0.5%
Current
0.5%
Frequency
0.5%
Power Factor
1%
Power
0.5%
Resolution
Voltage
0.1V
Current
0.001A
Frequency
0.1Hz
Power Factor
0.01
Power
0.1W
Measurement
Voltage
80 - 260V
Current
0 - 10A0 - 100A
Frequency
45 - 65Hz
Power Factor
0 - 1
Power
0 - 2.3kW0 - 23kW
Exploitation
Operating Temperature
-20 - +60°C
