SimpleLink™ CC2652P is a multi-protocol wireless microcontroller (MCU) operating at 2.4 GHz, supporting Thread, Zigbee®, Bluetooth® 5.2 Low Energy, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary systems including TI 15.4-Stack (2.4 GHz), and parallel multi-protocol through DMM driver.
ICs
CC2652P
Multi-Protocol Wireless MCU
Features
Package

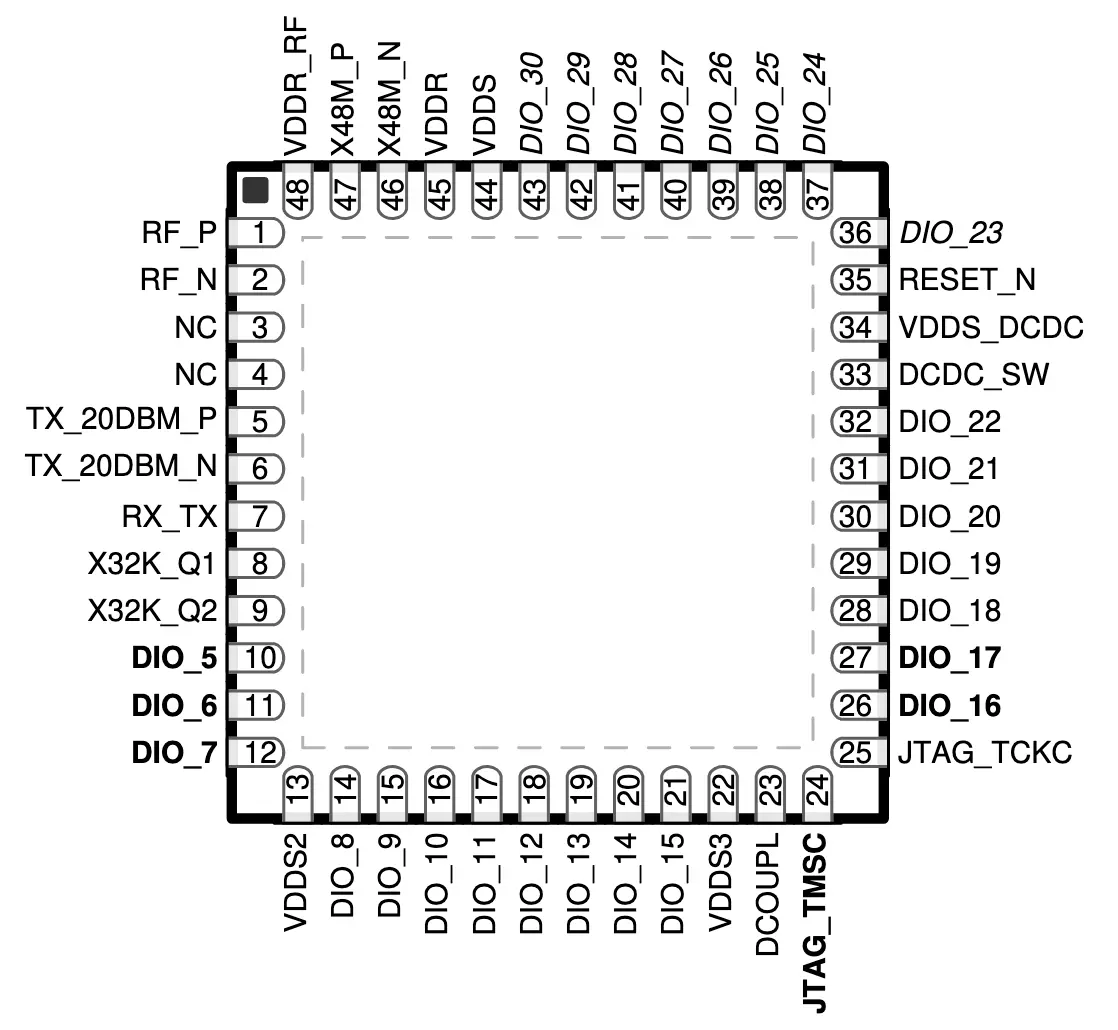

7x7mm RGZ VQFN48 (26 GPIOs)
Interface
2 x UART/2 x SSI/SPI/Microwire/TI/I²C/I²S/RTC/GPIO/12-bit ADC
Voltage
Supply
1.8 - 3.8V
Current Consumption
Standby Mode
0.94uA (including RTC, 80KB RAM, and CPU retention)
Data Transmission
0dBm = 7.3mA+5dBm = 9.6mA+10dBm = 22mA+20dBm = 85mA
Data Acquisition
6.9mA
Power Off State
150nA
MCU
Type
Arm® Cortex®-M4F
CoreMark®
148
Frequency
48MHz
Over-the-Air (OTA) Update
Yes
Memory
Flash
352KB
ROM
256KB
SRAM
8KB
RAM
80KB
