CC1310
Sub-1 GHz RF Device
Description

CC1310 is an economical, ultra-low power Sub-1 GHz RF device from Texas Instruments™, which is part of the SimpleLink™ microcontroller (MCU) platform.

The platform consists of Wi-Fi®, Bluetooth® Low Energy, Sub-1 GHz, Ethernet, Zigbee®, Thread, and host MCUs. All of these devices use a common, easy-to-use development environment with a single-core software development kit (SDK) and a rich set of tools.

The one-time integration of the SimpleLink platform allows users to add any combination of devices to their design out of the box, providing 100% code reuse when design requirements change.

With very low RF and MCU active current consumption, along with flexible low-power modes, the CC1310 device provides excellent battery life and enables the use of flat batteries.

Links to external resources
Features

Package

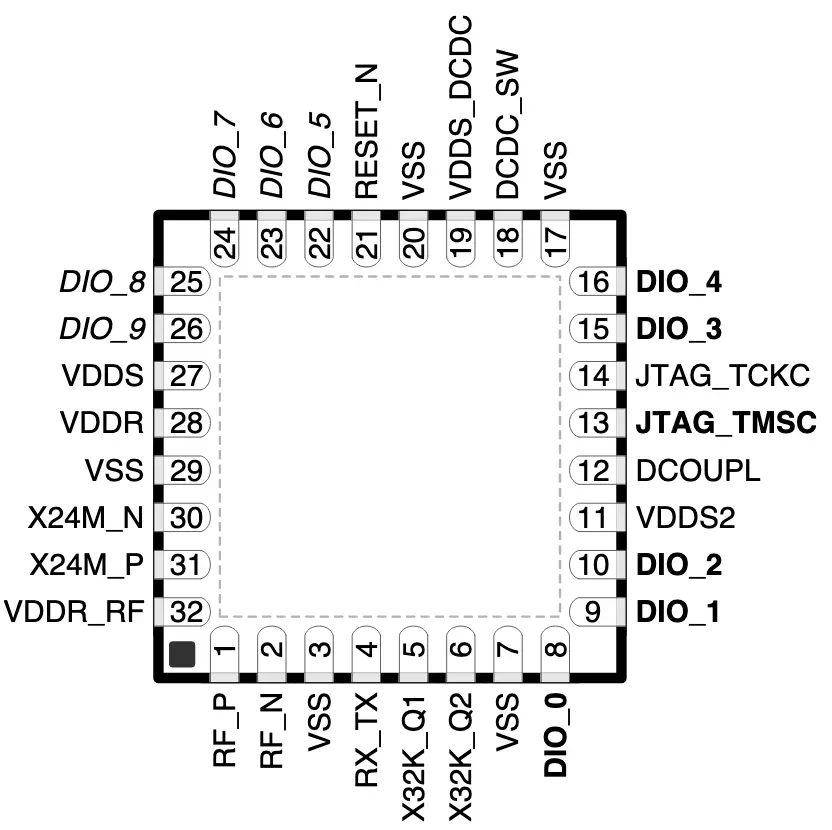

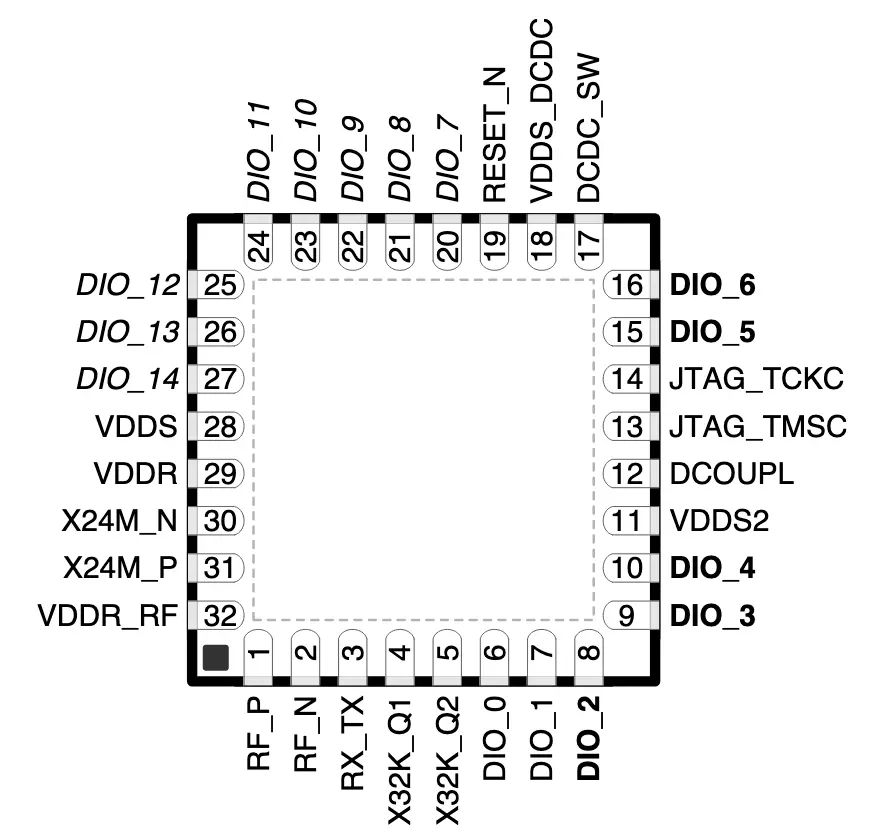

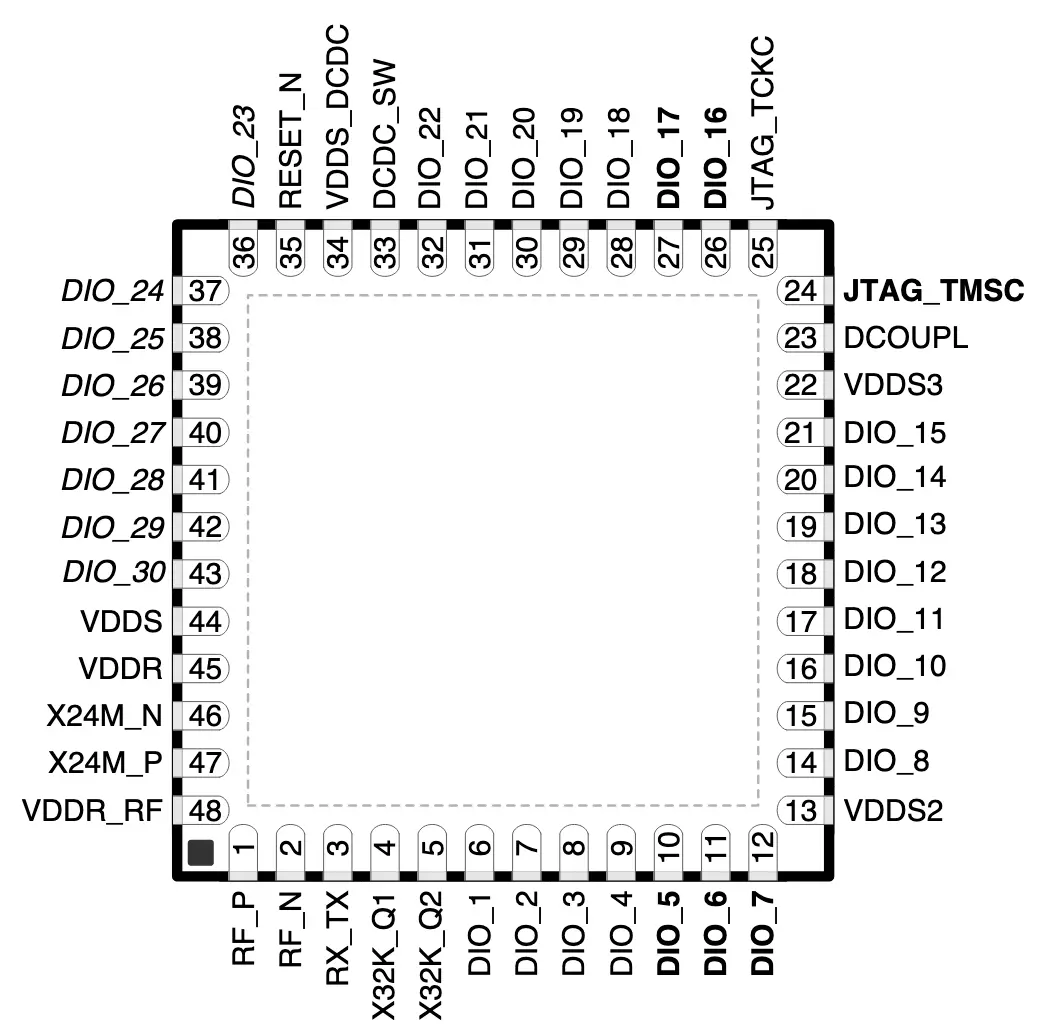

7x7mm RGZ VQFN48 (30 GPIOs)5x5mm RHB VQFN32 (15 GPIOs)4x4mm RSM VQFN32 (10 GPIOs)

Voltage

Supply

1.8 - 3.8V

Current Consumption

Standby Mode

0.7uA

Data Transmission

+10dBm = 13.4mA

Data Acquisition

5.4mA

Power Off State

185nA (wake-on external events)

MCU

Type

Arm® Cortex®-M3

CoreMark®

142

ULPBench™

158

Frequency

48MHz

Over-the-Air (OTA) Update

Yes

Memory

Flash

2/64/128KB
